Mechanical Seal Operating Limits
- Pressure: ≤ 25Mpa
- Temperature: -20~180℃
- Linear velocity: ≤ 25m/s
Mechanical Seal Material
- Stationary Ring(Ceramic/SiC/TC)
- Rotary Ring(Carbon/SiC/TC)
- Secondary Seal(NBR/EPDM/VITON)
- Spring & Other Parts(SS304/SS316)

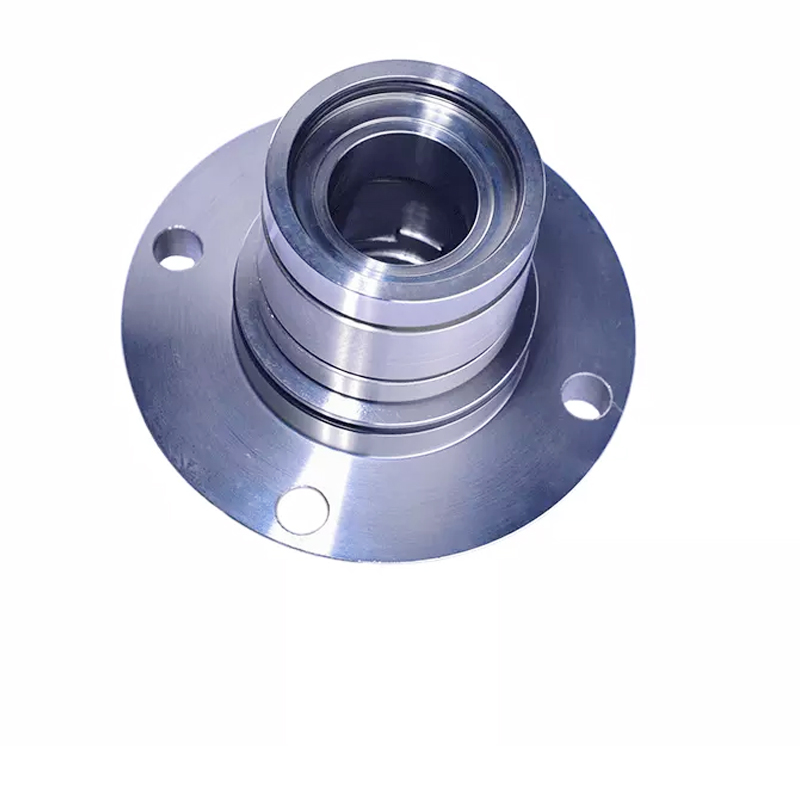

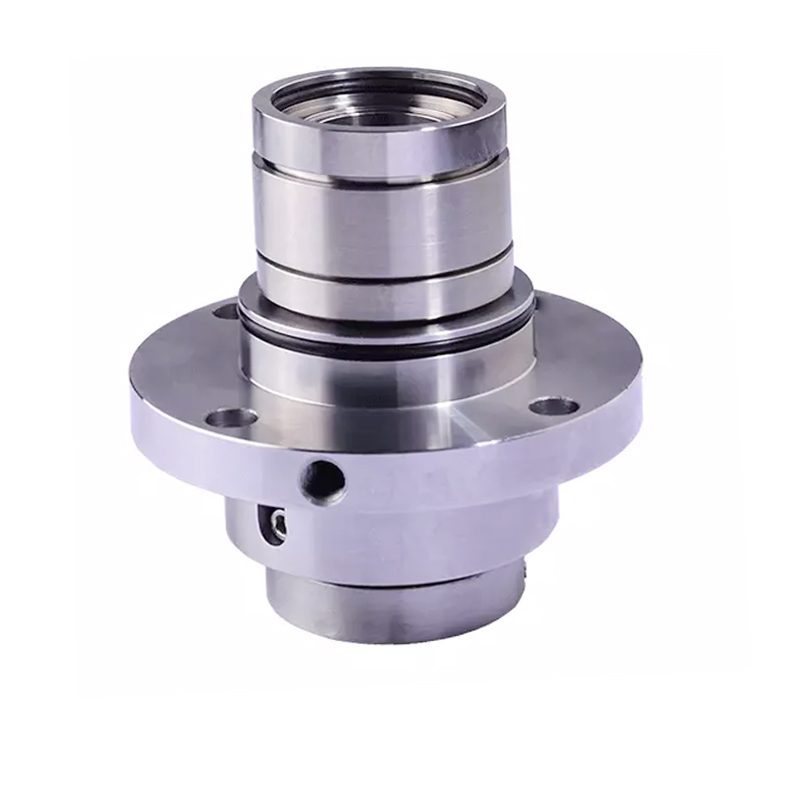

Double Face Safematic Cartridge Seal
Support global shipment ! High quality product famous brand double face mechanical seal D11 with integrated floating bearing.We also design the shaft mechanical sealing seals according to your needs.Welcome to contact us to get the latest quotes.
- Model:FS-d11
- Size:Customized/Design
- Min.Order Quantity: 1 Piece
- Lead time:25-30days or Depends on Order Quantity
Application equipment:Pipeline pumps, centrifugal pumps, submersible pumps, fresh water pumps, sewage pumps, chemical pumps. etc.
Application industry:petroleum,metallurgy industry,papermaking,oil refining industry,energy material industry,pharmaceuticals industry and water treatmentsystem etc.
Features:
- Cartridge unit
- Unbalanced
- Liquid-lubricate
- Multiple springs rotating
- Suitable for standardizations
- Integrated floating bearing
- Double Face
The seal faces are lubricated by non-pressurized(quench) or pressurized(barrier) external clean sealing liquid led through a pipe/hose from an external source into the seal between the seal face pairs.
- Positive or negative inlet pressure
- impeller balcancing holes are not required . but can be
Temperature of the out-flowing sealing liquid may not exceed 60°C/140°F.
Liquids
- Clean and slightly contaminated liquids
- Viscous liquids up to 4000 cst
- Fibrous slumes up to 8%
- Liquids containing large solids
- Temperature up to 180°C /355°F .
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer.
Q: How long is your delivery time?
A: For stock items,we can ship them immediately after receiving the payment.For other items,we will need about 25 days for mass production.
Q: We can’t find our products we needed in your catalgue,can you make customized products for us?
A: Yes,customized products are available.
Q: We don’t have drawing or picture available for customer products,can you design it?
A:Yes,we can make the best suitable design in accordance with your application.
Q: Do you provide free samples?
A:Usually we do not provide free samples.There is a sample cost which can be refund after your next order.
